General Specifications
Specification Details Face Roll Width 2200 mm – Chromium-plated idler rollers Maximum Web Width 2000 mm Installation Not suitable for use with inflammable solvent-based products Paint Finish RAL 6021 (Green) Machine Construction Built according to CE Directive
Top Coater – Model M167
Feature Specification Printing Roll Diameter 260 mm, water-cooled (one engraved roller included) Pressure Roll Diameter 180 mm Pressure Roll Surface Rubber covered Number of Pressure Rolls 1 Pressure Face Width Full width Back-up Roll Diameter 240 mm Back-up Roll Surface Chrome plated Drive AC Synchronization Automatic Compound Tray Stainless steel with motorized vertical movement for washing and draining Doctor Blade Motion Prepared for alternating movement while in contact with the printing roll Operator Platforms 2 (one in front and one behind the machine) Web Centering Device Automatic edge-guiding system aligns one edge of the fabric
Drying Oven – Model VTX/V
Technical Specifications
Feature Specification Compartments 4 Compartment Length 2000 mm each Total Length 8000 mm Oven Width 3300 mm Width with Doors Open 5100 mm Total Thermal Power 280,000 kcal/h (70,000 kcal/h per compartment) Heating System Thermal oil Maximum Temperature Approximately 220°C Temperature Zones 2 Maximum Exhaust Capacity 4,000 m³/h Circulation Fan Motor Variable speed, 4 kW Fan Speed 1400 rpm Maximum Air Capacity 14,000 m³/h Fan Diameter 710 mm Air Distribution 75% upper nozzles (100% with lower dampers closed); 25% adjustable lower nozzles Features
- High-performance percussion-type drying oven with hot-air recirculation.
- Designed for drying and polymerizing coated or impregnated materials.
- Modular construction with independent hot-air circulation, heating, and exhaust for each compartment.
- Roof-mounted circulation fan for easy inspection.
- Dual finned galvanized heat exchangers.
- Easily removable heat exchanger protection filters.
- Precision upper air nozzles for uniform drying.
- Adjustable lower nozzles for longitudinal airflow control.
- Cool air emission from the lower section with adjustable airflow.
- Easily removable idler rolls with heat-resistant bearings.
- Excellent thermal and acoustic insulation.
- Side panels open upward for inspection, cleaning, and filter maintenance.
- Compartments mounted on cross members and support legs.
- Exhaust ducting connected to one or more exhaust fans with adjustable dampers for each compartment.
- Outlet smoke exhaust hood connected to the main exhaust system.
- Powered web threading system.
- Multiple independently controlled temperature zones using thermoregulators.
Two-Roll Cooling Unit
Technical Specifications
Feature Specification Cooling Rolls 2 Roll Diameter 318 mm Contact Surface 1200 mm Machine Width 3200 mm Features
- Heavy-duty steel frame with cross supports.
- Chrome-plated steel cooling rolls with internal water circulation.
- Each roll equipped with rotary joint, fittings, and valve for cooling water.
- Powered AC drive system with inverter control.
- Lower roll driven via chain transmission after gearbox.
- Upper roll driven via chain transmission through a torque-limiting device and secondary gearbox.
- Pneumatic dancer unit with potentiometer for web tension control and synchronization with upstream/downstream equipment.
- Chromium-plated idler rolls.
Note
New drives, PLC hardware, and operator controls will be required for independent operation. -

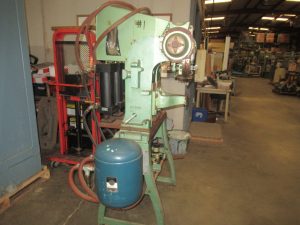

Drive Pneumatic Setting Multi Head Max Tubular Rivet Capacity – Diameter 0.188 Inch Max Tubular Rivet Capacity – Length 1 3/8 Inch Throat Depth 9 Inch Stroke 3 Inch Hopper 7″ Std., 8″ & 10″ Available Mounting Type Floor Anvil Height 45 Inch Overall Height 64 Inch Cycle Time 1 Second Air Required 65 psi, 1.28 cu. ft. Electrical Controls 110 V AC, 1 A Floor Space 28 × 32 Inch Net Weight 675 lb -
(1) Model HTVS4/SD
- 220 cm
- 1993 year
(1) Model HTV8/J
- 200 cm
- 1991 year
(1) Model HTVS8/J
- 210 cm
- 1993 year
-
Model A/N Number Year MFG Dobby NBTR 2/55 803 720 A Mutronic NBTR 2/55 803 720 B Mutronic NF 42 100 309 B Pattern Chain NFR 42 82.00.954 A 1982 Mutronic NFR 42 83.04.812 A 1983 Mutronic NFREQ 42 85.01.955 A 1985 Mutronic NFREQ 42 86.00.455 A 1986 Mutronic NFREQ 42 86.01.350 A 1986 Mutronic NFREQ 42 87.02.300 A 1987 Mutronic NFREQ 42 87.02.300 B 1987 Mutronic NFREQ 42 87.02.300 C 1987 Mutronic NFREQ 42 87.02.300 D 1987 Mutronic -

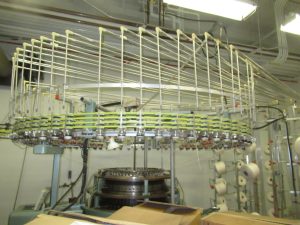

Machine MFG Model Amount Needle Count Cylinder Size Approx. Age Busi 404 IDEA 16 156 3.75 2012 Busi 404 IDEA 7 156 3.75 2014 Busi 404 IDEA KNEEKER 1 200 4.5 2014 Busi LIN TOE 4 168 3.75 2014 Sangiacimo Fantasi CUSH 2 168 3.75 Sangiacimo HT1 LIN TOE 1 156 3.75 2017 Sangiacimo HT1 1 168 3.75 2017 Sangiacimo HT1 4 168 3.75 2017 Sangiacimo HT1 2 168 3.75 Sangiacimo Fantasi CUSH 6 168 3.75 Sangiacimo LIN TOE 3 168 3.75 Sangiacimo STAR 40 Mills 3 132 4 Soosan 5DE REFERB 9 168 3.75 2002 Soosan 606TM 602 CUSH 4 156 3.75 2015 Soosan SOS 602 CUSH 6 156 3.75 2002 Total 69
